YG-15-02 Induction Cooktop Features:
✅ Portable, Safe and Convenient
✅ Power setting: 120 V/60 Hz, 1500 watts
✅ Full range temperature control (160°F – 400°F)
✅ 5 power settings / 5 temperature settings
✅ Fast and Easy operation
✅ No waiting time
✅ Dual function programs (Warm / Cook)
✅ 1-120 Min timer with a cancel option
✅ Electric display for timer & temp/power settings
✅ Easy cleanup
✅ Energy efficient (uses 25% less energy than standard electric hotplates)
✅ Auto cookware compatibility detection
✅ Auto shut-off / overheat protection function
✅ ETL approved
✅ Size: 12" x 14-1/2" x 2-1/2"

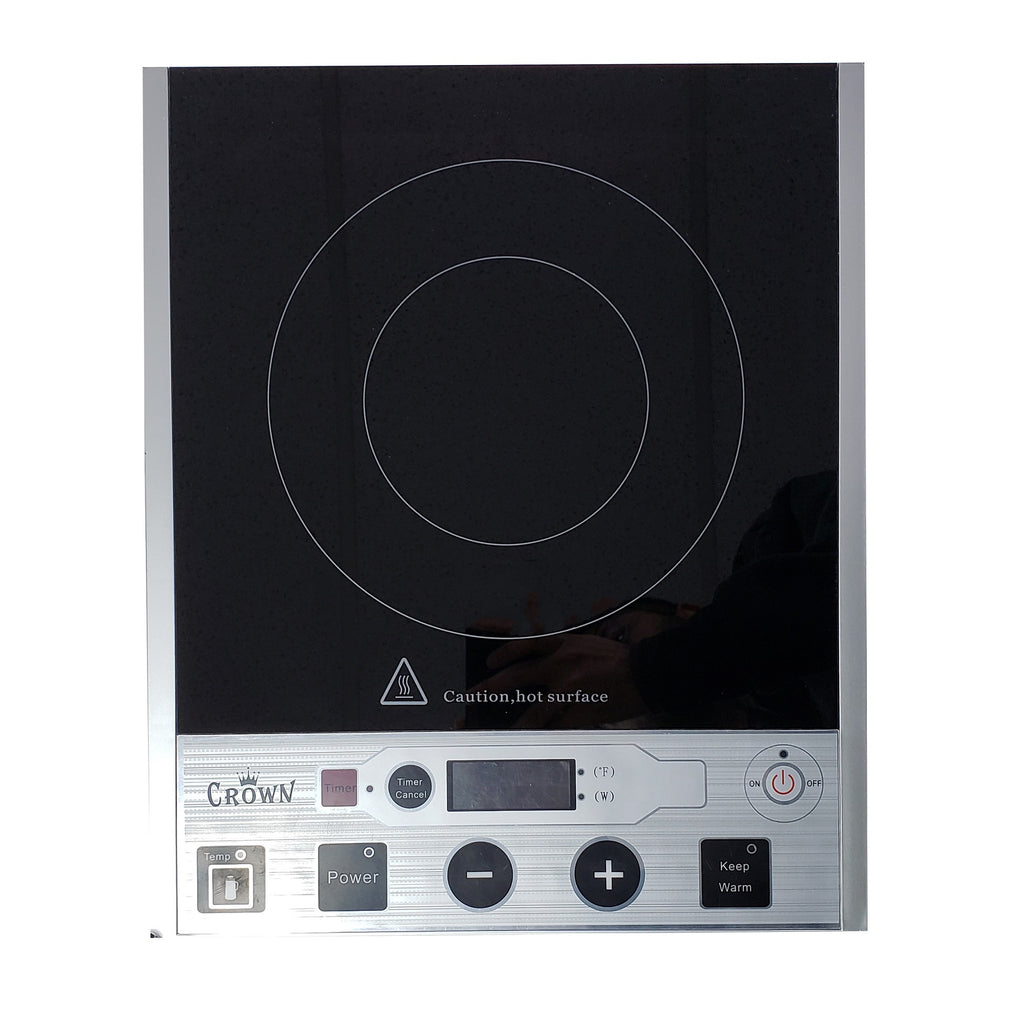

About the YG-15-02 Induction Cooktop:
The Crown Portable Electric Induction Cooktop features an easy touch button, a crystalline glass top, a 1 to 120-minute timer setting, a full range 160°F-400°F cooking temperature setting, and fast, instant heat with no wait time. This induction cooktop also has a large LCD display, automatic cookware compatibility detection, uses 25% less energy than other electric hot plates, offers overheat protection, and is easy to clean.
Operation Principle:
In the Induction Cooktop,120 VAC power converts to HF current through the circuit. The HF current generates an alternating magnetic field through an induction coil. Then the magnetic field penetrates the face plate to make force on the bottom of the pan to generate a magnetic field vortex that overcomes the internal resistance flow of the pat bottom to generate joule, converting power energy to heat energy.
Specifications:
Type
|
Rated Power
|
Range of Power Regulation
|
Range of Temperature
|
Rated Voltage
|
YG-15-02
|
1500 W
|
300-1500 W
|
160-400°F
|
120 V~/60 Hz
|
