HRD4803U Dual Fuel Gas Range Features:
- Dual Fuel Gas Range - Combines a gas cooktop with an electric oven
- Electric Oven - Electric ovens tend to provide more even and consistent heat distribution, making them ideal for baking and roasting
- Versatility - With the dual fuel gas range, you have the flexibility to choose between gas or electric cooking methods, giving you more options for various cooking techniques
-
High-Powered BTU Burners - From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this dual fuel gas range gives you the power you need for large family meals
-
LuxGlide™ Telescopic Racks - This luxury feature of the dual fuel gas range lets the rack fully extend without tipping and adjusts to fit different support levels for easy handling of heavy dishes
-
Energy Efficient Heating - Heating element distributes heat evenly for excellent boiling and baking
-
LED Control Panel Lights - When in operation, the LED control panel lights illuminate a striking blue for an added pop of color
-
Dual Ovens - Dual ovens at 4.2 cu. ft. and 2.5 cu. ft. capacity allow you to cook multiple dishes at a time
-
Continuous Cast - Iron Cooking Grates - Heavy-duty continuous cast-iron cooking grates that can handle any size cookware 15,000 BTU Griddle - The 15,000 BTU griddle offers additional cooking space and flexibility
-
Brilliant Blue Porcelain Interior - The brilliant blue porcelain interior adds a bold, stylish touch to your professional dual fuel gas range
-
Heavy Duty Control Knobs - Heavy duty, die-cast metal burner control knobs add style and durability to the dual fuel gas range
-
Black Porcelain Spill Tray - Black porcelain spill tray on cooktop catches the mess and makes the dual fuel gas range easy-to-clean
-
Cost - Dual fuel gas range tend to be more expensive than gas range due to the combination of gas and electric components
About the HRD4803U Dual Fuel Gas Range:

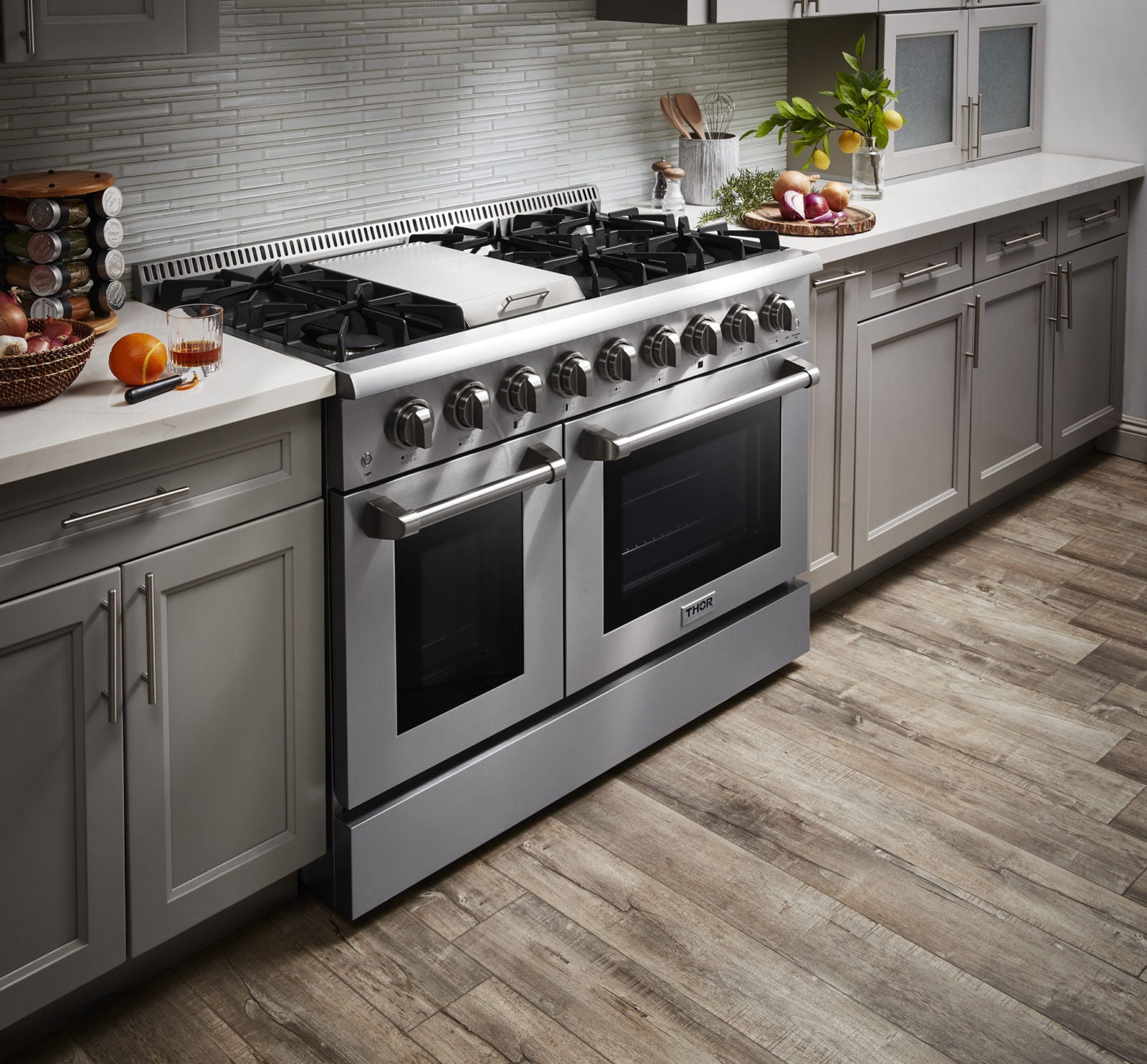

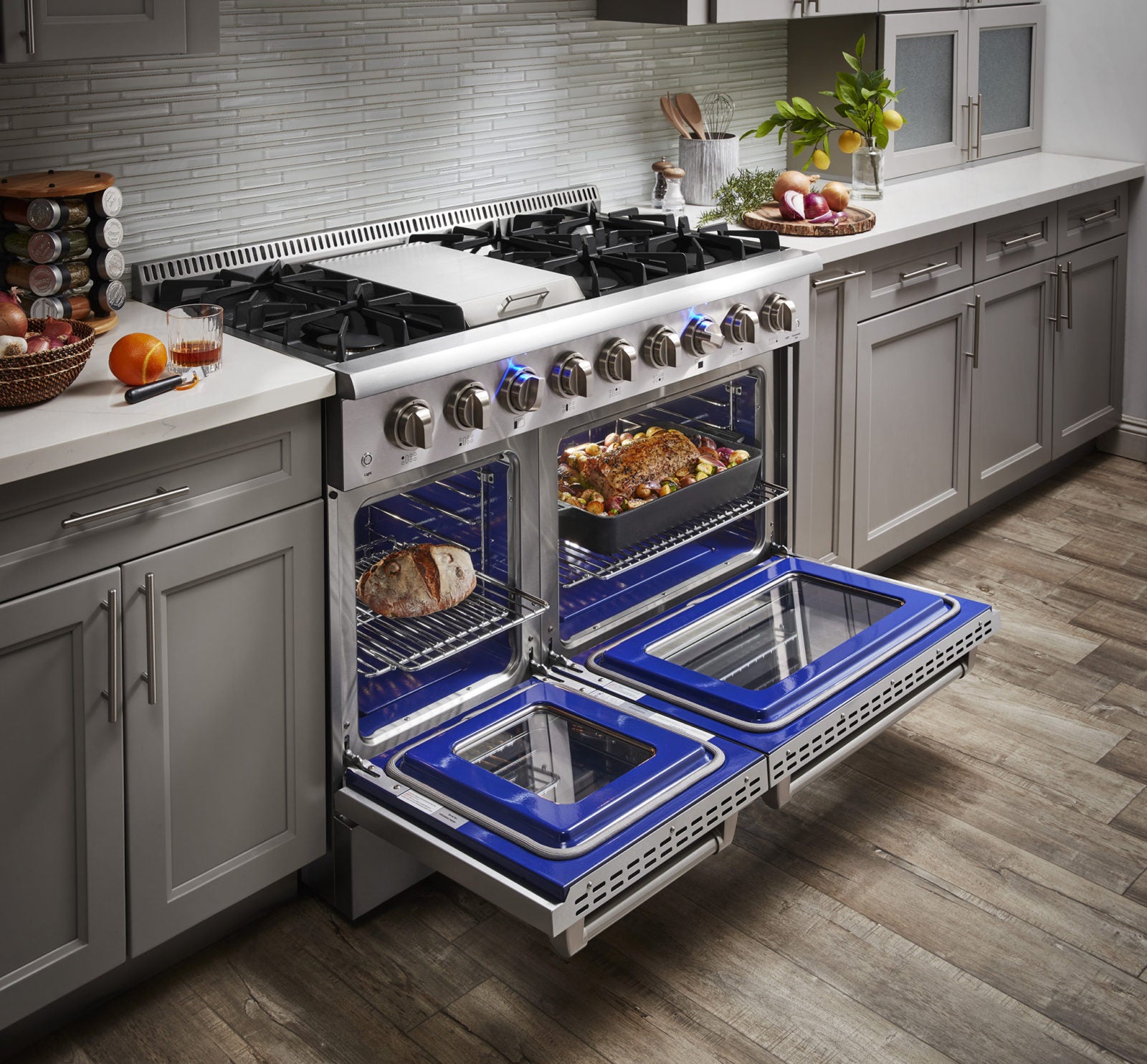

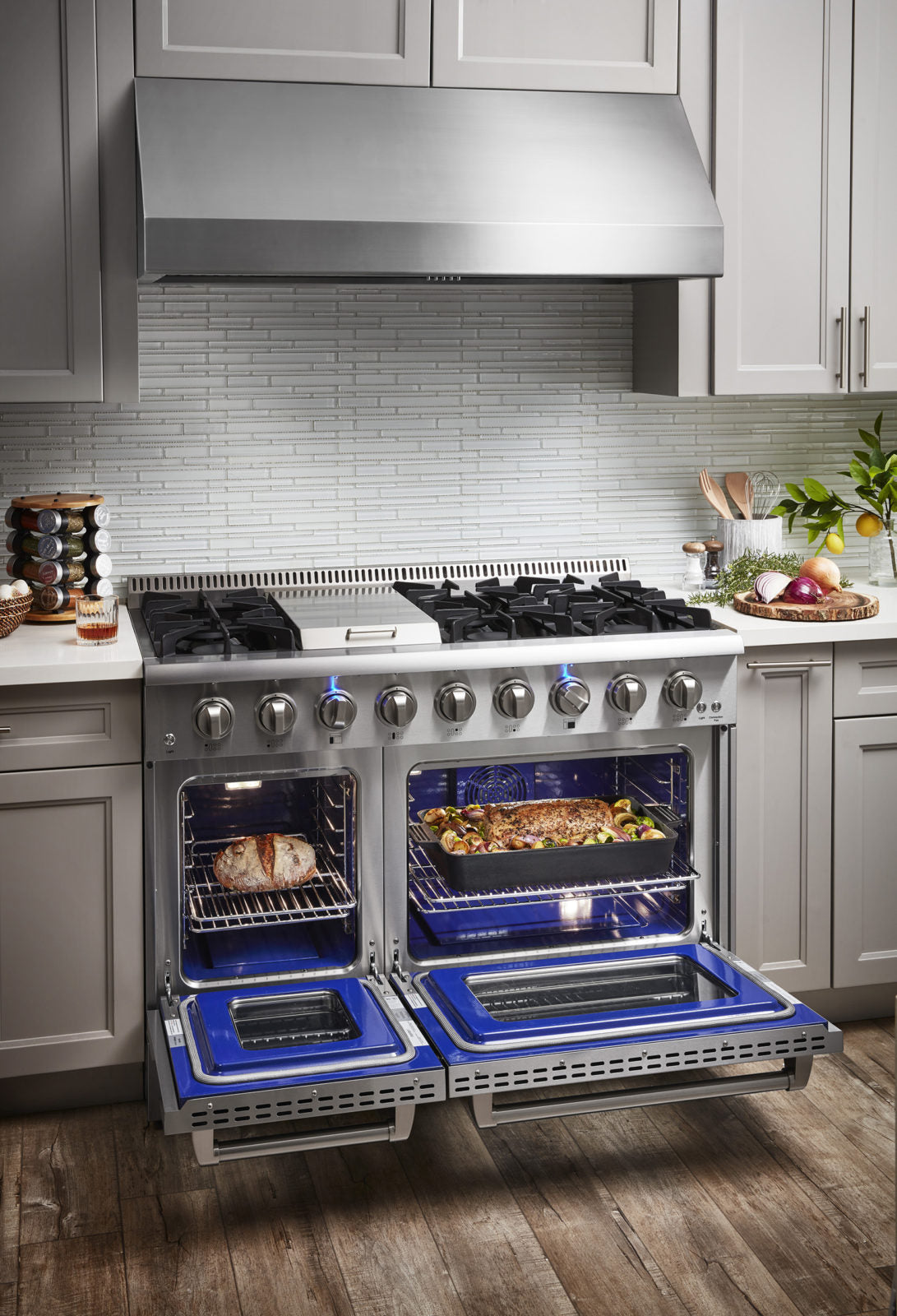

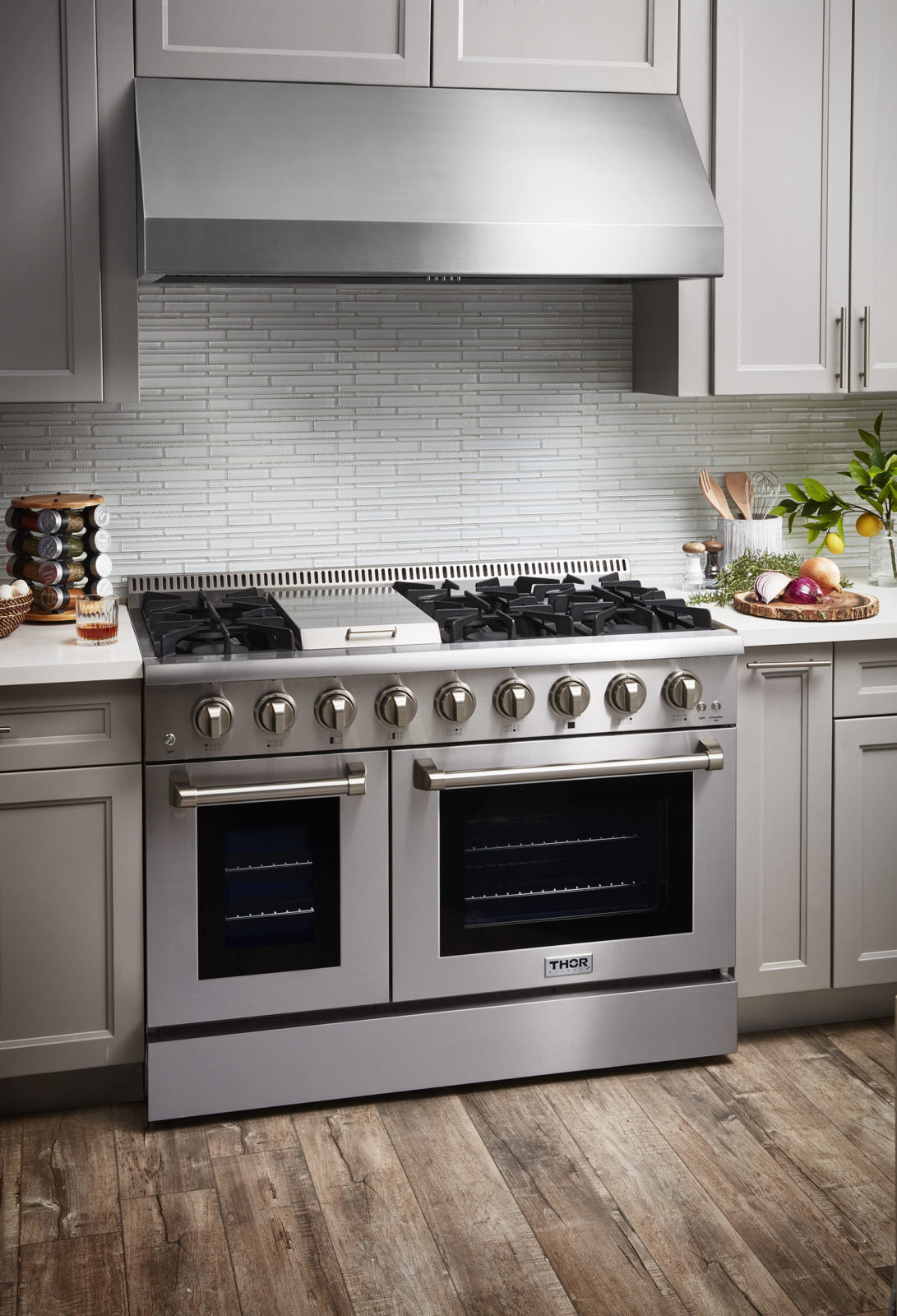

The THOR Kitchen 48 Inch Double Oven Dual Fuel Range is a stainless-steel machine that is designed with professional features and functionality. This powerful dual fuel gas range has 6 burners including two 18,000 BTU single burners, two 15,000 BTU dual burners and two 12,000 BTU single burners with the high-intensity 15,000 BTU stainless-steel griddle.
Technical Details:
| Fuel Type |
Natural Gas / LP Convertible |
| Electrical Requirements |
240V, 4-Prong 14-50R Power Outlet |
| Circuit Breaker (A) |
40A |
| Frequency (Hz) |
60 Hz |
Burner Performance:
| Front Left (Single) |
18,000 BTU |
| Front Middle (Dual Burner) |
15,000 BTU (650 BTU for Simmer) |
| Front Right (Single) |
18,000 BTU |
| Rear Left (Single) |
12,000 BTU |
| Rear Middle (Single) |
12,000 BTU |
| Rear Right (Dual Burner with simmer function) |
15,000 BTU (650 BTU for Simmer) |
| Stainless Steel Griddle |
15,000 BTU |
Oven Performance:
| Oven Capacity |
6.7 cu. ft. (4.2 cu. ft. for 30-inch oven) (2.5 cu. ft. for 18-inch oven) |
| Bake Power (30-inch oven) |
850 W (Top) / 3,000 W (Bottom) |
| Bake Power (18-inch oven) |
2,500 W (Bottom) |
| Broil Power (30-inch oven) |
3,500 W |
Dual Fuel Gas Range Dimensions:
| Width |
47.9” |
| Height (from bottom to top of back splash) |
38 1/2”-39 1/2” |
| Height (from bottom to top of side panel) |
35 15/16”- 36 15/16” |
| Depth (from back panel to bullnose) |
27 7/8” |
| Depth (from back panel to control board) |
26 1/2” |
| Depth (from back panel to side panel front) |
24 3/16” |
| Depth of control panel (minimum) |
2 1/4” |
| Depth of control panel (bullnose) |
3 11/16 ” |
| Cast iron cooking grate (W x L) |
10 3/4” x 23” |
| Adjustable Legs |
Not to Exceed 1” |
Required Cutout Size:
- 48 1/8” x 24 3/16” x 35 15/16” (+1”) 30”
- Oven Cavity Dimension: 24”W x 15 1/4”H x 18”D 30”
- Oven Rack Dimension: 22 3/4” x 15 1/2”
- Distance Between Oven Rack: 2 1/8”
